Note:

  1.  The 9 errors  shown in the report below are typical & normal for the VAIO F Series @ the present & do not cause any problems. If your own report show more errors then you should look into it & fix them.
  2. When going to the report's path, I could not open the html doc with neither Firefox, Internet Explorer nor Google Chrome. Copied the report to My Documents & it then opened fine. Start > search: energy-report.html > right click > Open File Location > copy to your folder, Open the copy in your browser.

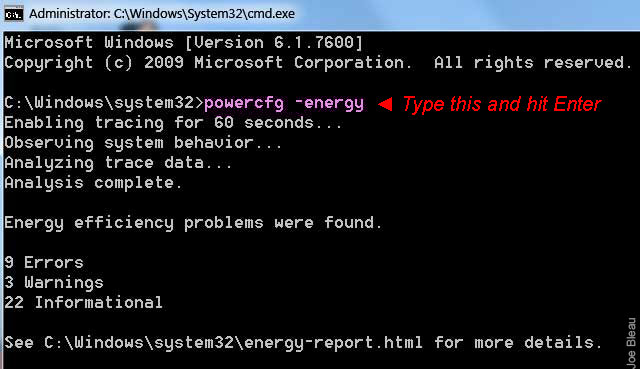

How to do it on the Vaio F Series with Windows 7: Start > search: cmd > right click, run as administrator > type exactly & only: powercfg -energy w/o the full path shown below and wait for the report to be produced, it takes about one minute to get own report.

-------------------------------------------------------------------------------------------------

Power Efficiency Diagnostics Report

Computer Name XXXXXXX-VAIO
Scan Time 2010-03-14T02:55:11Z
Scan Duration 60 seconds
System Manufacturer Sony Corporation
System Product Name VPCF115FM i7-720QM, 6GB, US 1080p GT 330M
BIOS Date 12/07/2009
BIOS Version R0250Y6
OS Build 7600 Windows 7 Home Premium 64-bit
Platform Role PlatformRoleMobile
Plugged In true
Process Count 79
Thread Count 955
Report GUID {ec84dcf0-5013-4ebb-924d-cc37ee5f7fc6}

Analysis Results

Errors

Platform Power Management Capabilities:ACPI _PSD Object Failed Validation
There is a problem with the definition of the ACPI _PSD object on this computer. Installing the latest system firmware (BIOS) may resolve this issue.
Group 0
Index 0
Platform Power Management Capabilities:ACPI _PSD Object Failed Validation
There is a problem with the definition of the ACPI _PSD object on this computer. Installing the latest system firmware (BIOS) may resolve this issue.
Group 0
Index 1
Platform Power Management Capabilities:ACPI _PSD Object Failed Validation
There is a problem with the definition of the ACPI _PSD object on this computer. Installing the latest system firmware (BIOS) may resolve this issue.
Group 0
Index 2
Platform Power Management Capabilities:ACPI _PSD Object Failed Validation
There is a problem with the definition of the ACPI _PSD object on this computer. Installing the latest system firmware (BIOS) may resolve this issue.
Group 0
Index 3
Platform Power Management Capabilities:ACPI _PSD Object Failed Validation
There is a problem with the definition of the ACPI _PSD object on this computer. Installing the latest system firmware (BIOS) may resolve this issue.
Group 0
Index 4
Platform Power Management Capabilities:ACPI _PSD Object Failed Validation
There is a problem with the definition of the ACPI _PSD object on this computer. Installing the latest system firmware (BIOS) may resolve this issue.
Group 0
Index 5
Platform Power Management Capabilities:ACPI _PSD Object Failed Validation
There is a problem with the definition of the ACPI _PSD object on this computer. Installing the latest system firmware (BIOS) may resolve this issue.
Group 0
Index 6
Platform Power Management Capabilities:ACPI _PSD Object Failed Validation
There is a problem with the definition of the ACPI _PSD object on this computer. Installing the latest system firmware (BIOS) may resolve this issue.
Group 0
Index 7
Platform Power Management Capabilities:PCI Express Active-State Power Management (ASPM) Disabled
PCI Express Active-State Power Management (ASPM) has been disabled due to a known incompatibility with the hardware in this computer.

Warnings

Platform Timer Resolution:Platform Timer Resolution
The default platform timer resolution is 15.6ms (15625000ns) and should be used whenever the system is idle. If the timer resolution is increased, processor power management technologies may not be effective. The timer resolution may be increased due to multimedia playback or graphical animations.
Current Timer Resolution (100ns units) 10000
Maximum Timer Period (100ns units) 156001
Platform Timer Resolution:Outstanding Timer Request
A program or service has requested a timer resolution smaller than the platform maximum timer resolution.
Requested Period 10000
Requesting Process ID 2828
Requesting Process Path \Device\HarddiskVolume3\Program Files (x86)\Hard Disk Sentinel\HDSentinel.exe
Power Policy:802.11 Radio Power Policy is Maximum Performance (Plugged In)
The current power policy for 802.11-compatible wireless network adapters is not configured to use low-power modes.

Information

Platform Timer Resolution:Timer Request Stack
The stack of modules responsible for the lowest platform timer setting in this process.
Requested Period 10000
Requesting Process ID 2828
Requesting Process Path \Device\HarddiskVolume3\Program Files (x86)\Hard Disk Sentinel\HDSentinel.exe
Calling Module Stack \Device\HarddiskVolume3\Windows\SysWOW64\ntdll.dll
\Device\HarddiskVolume3\Windows\SysWOW64\winmm.dll
\Device\HarddiskVolume3\Program Files (x86)\Hard Disk Sentinel\HDSentinel.exe
Power Policy:Active Power Plan
The current power plan in use
Plan Name OEM Balanced
Plan GUID {381b4222-f694-41f0-9685-ff5bb260df2e}
Power Policy:Power Plan Personality (On Battery)
The personality of the current power plan when the system is on battery power.
Personality Balanced
Power Policy:Video Quality (On Battery)
Enables Windows Media Player to optimize for quality or power savings when playing video.
Quality Mode Balance Video Quality and Power Savings
Power Policy:Power Plan Personality (Plugged In)
The personality of the current power plan when the system is plugged in.
Personality Balanced
Power Policy:Video quality (Plugged In)
Enables Windows Media Player to optimize for quality or power savings when playing video.
Quality Mode Optimize for Video Quality
System Availability Requests:Analysis Success
Analysis was successful. No energy efficiency problems were found. No information was returned.
USB Suspend:Analysis Success
Analysis was successful. No energy efficiency problems were found. No information was returned.
CPU Utilization:Processor utilization is low
The average processor utilization during the trace was very low. The system will consume less power when the average processor utilization is very low.
Average Utilization (%) 1.33
Battery:Battery Information
Battery ID Sony Corp.
Manufacturer Sony Corp.
Serial Number
Chemistry LiOn
Long Term 1
Design Capacity 57240
Last Full Charge 57240
Platform Power Management Capabilities:Supported Sleep States
Sleep states allow the computer to enter low-power modes after a period of inactivity. The S3 sleep state is the default sleep state for Windows platforms. The S3 sleep state consumes only enough power to preserve memory contents and allow the computer to resume working quickly. Very few platforms support the S1 or S2 Sleep states.
S1 Sleep Supported false
S2 Sleep Supported false
S3 Sleep Supported true
S4 Sleep Supported true
Platform Power Management Capabilities:Adaptive Display Brightness is supported.
This computer enables Windows to automatically control the brightness of the integrated display.
Platform Power Management Capabilities:Processor Power Management Capabilities
Effective processor power management enables the computer to automatically balance performance and energy consumption.
Group 0
Index 0
Idle (C) State Count 2
Performance (P) State Count 7
Throttle (T) State Count 8
Platform Power Management Capabilities:Processor Power Management Capabilities
Effective processor power management enables the computer to automatically balance performance and energy consumption.
Group 0
Index 1
Idle (C) State Count 2
Performance (P) State Count 7
Throttle (T) State Count 8
Platform Power Management Capabilities:Processor Power Management Capabilities
Effective processor power management enables the computer to automatically balance performance and energy consumption.
Group 0
Index 2
Idle (C) State Count 2
Performance (P) State Count 7
Throttle (T) State Count 8
Platform Power Management Capabilities:Processor Power Management Capabilities
Effective processor power management enables the computer to automatically balance performance and energy consumption.
Group 0
Index 3
Idle (C) State Count 2
Performance (P) State Count 7
Throttle (T) State Count 8
Platform Power Management Capabilities:Processor Power Management Capabilities
Effective processor power management enables the computer to automatically balance performance and energy consumption.
Group 0
Index 4
Idle (C) State Count 2
Performance (P) State Count 7
Throttle (T) State Count 8
Platform Power Management Capabilities:Processor Power Management Capabilities
Effective processor power management enables the computer to automatically balance performance and energy consumption.
Group 0
Index 5
Idle (C) State Count 2
Performance (P) State Count 7
Throttle (T) State Count 8
Platform Power Management Capabilities:Processor Power Management Capabilities
Effective processor power management enables the computer to automatically balance performance and energy consumption.
Group 0
Index 6
Idle (C) State Count 2
Performance (P) State Count 7
Throttle (T) State Count 8
Platform Power Management Capabilities:Processor Power Management Capabilities
Effective processor power management enables the computer to automatically balance performance and energy consumption.
Group 0
Index 7
Idle (C) State Count 2
Performance (P) State Count 7
Throttle (T) State Count 8
